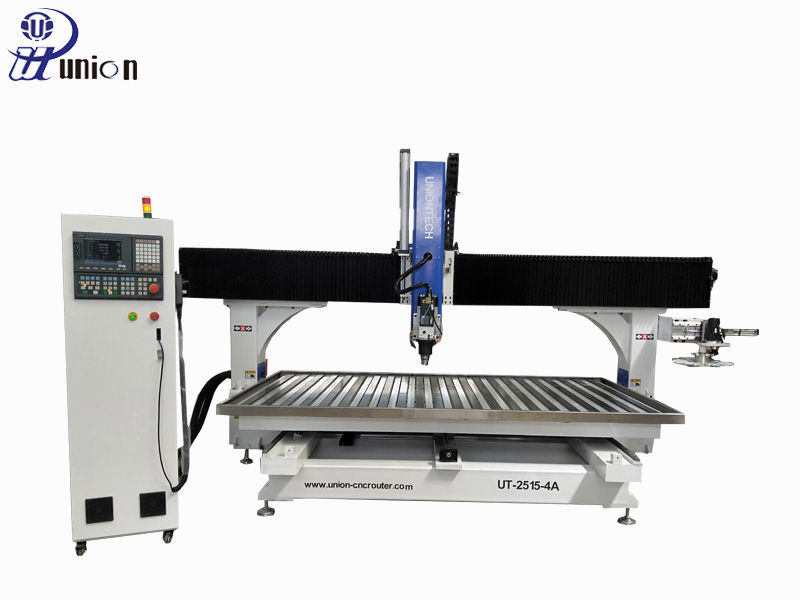

4 axis 2515 ATC cnc milling machine with table moving

the machine is professional for aluminum milling.
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications


Parameters:


Model

UT-2515ATC-4A cnc router

Working area

2500*1500*400mm

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Syntec 6MB control system

Spindle

HSD 9kw air cooling spindle with HSK63F

4 axis

The spindle can rotate 180 degree with servo motor

Spindle speed

0-24000RPM

Motor and Driver

YASKAWA servo driver and motor

Inverter

11kw Fuling inverter

Structure

Heavy duty thicker and bigger welded frame and gantry

Table surface

Thicker aluminum T-slot Working Table

Gantry structure

Table Moving

Calibration

Auto tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

ATC

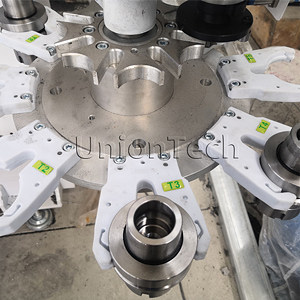

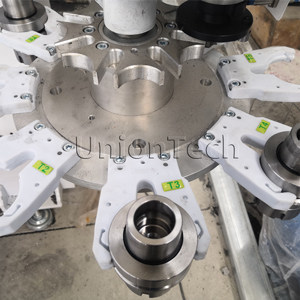

Carousel type with 8 tools


Machine details:


20180525154455286.jpg@!w400

20200720110414597.jpg@!w400

20200720110414756.jpg@!w400

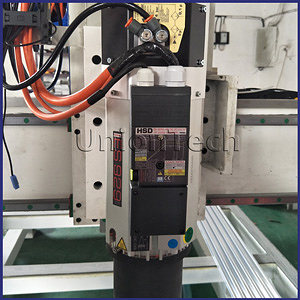

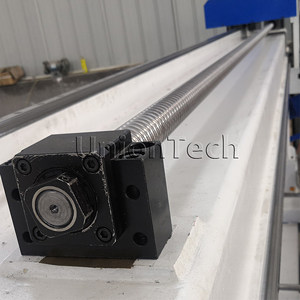

Italy 9kw HSD air cooling spindleHSK63F tool holderBall screw transmission for X axis

20200720110414133.jpg@!w400

20180525154549934.jpg@!w400

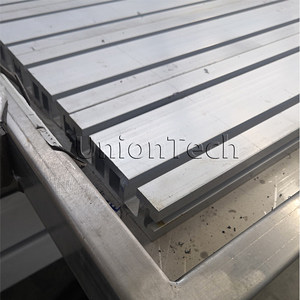

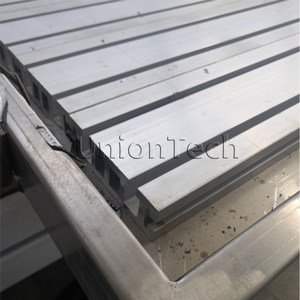

Solid aluminum T-slot working tableCooling system for metal workingSyntec 4axis control system

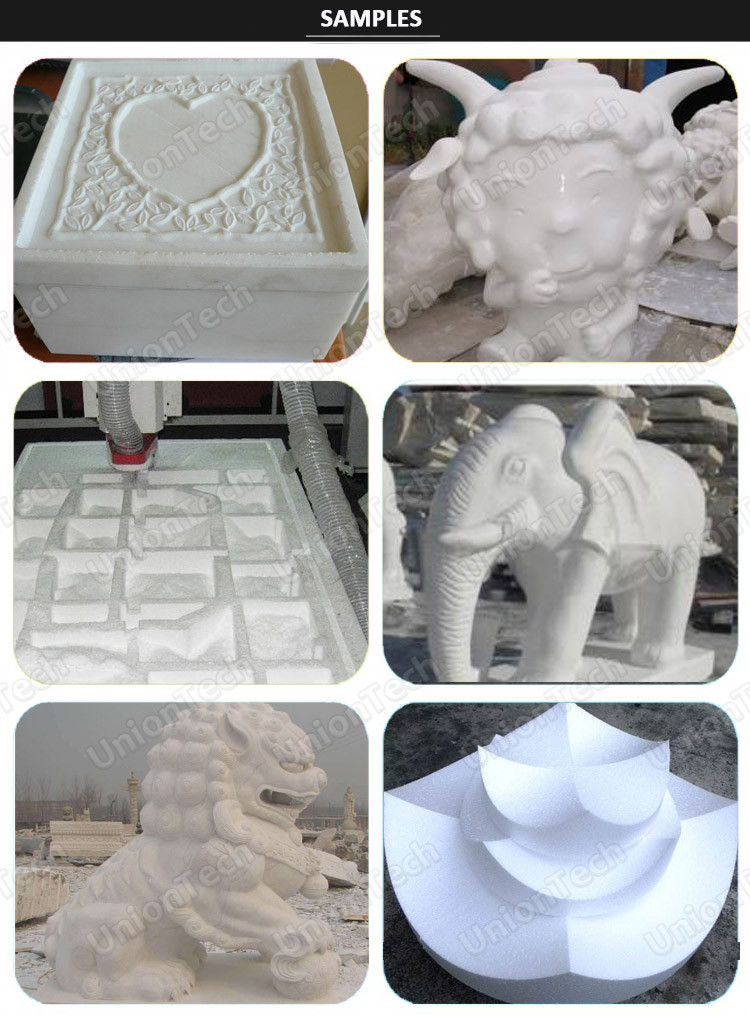

Applications:


1) Mould: wood, gypsum,foams, aluminum.


2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.


3) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.


4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.


5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.


20180507154946246.jpg@!w400
