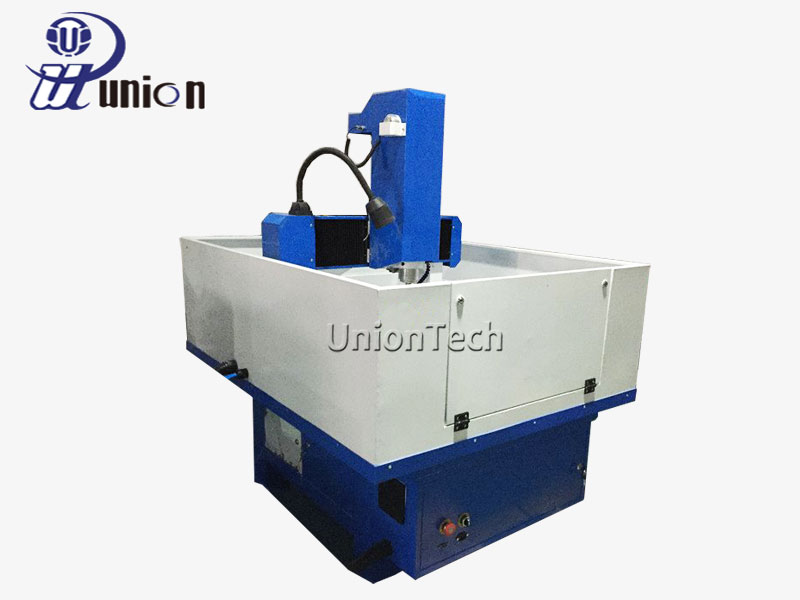

mini cnc 6060 router for metal

Parameter

Parts

Applications

Technical Parameters:

Model	UT6060M
Working area	600600200mm (can be customized)
Working Voltage	220V, 3PHASE, 60HZ (can be customized)
Control System	Mach3 control system
Spindle	3KW HQD GDK constant power spindle
Spindle speed	0-24000RPM/MIN
Motor and Driver	Leadshine stepper and driver
Inverter	Fuling inverter
Rotary axis	Yes
Structure	Cast iron
Table	Cast table
Gantry structure	Table moving
Transmission	3 Axis: Taiwan TBI Ball Screw
Command language	G Code
Software	ArtCam, JdPaint,Type3
Applications	Wood, MDF, PVC, Acrylic, Leather, Carpet, Carton, Rubber, Corrugated box, Foam, Leather strip.
Optional	RichAuto DSP A11 controller

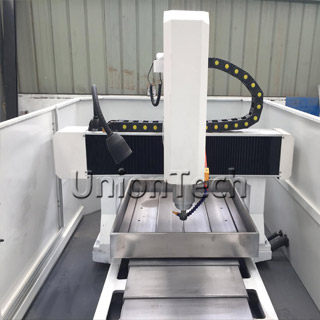

Parts of mini cnc 6060 router for metal

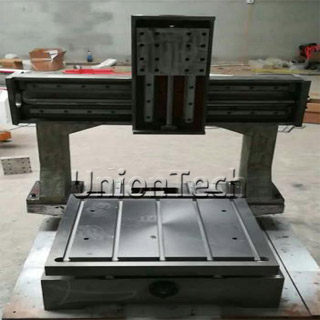

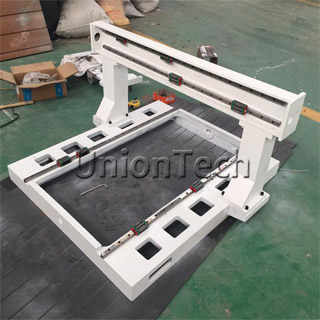

Cast iron structure	GDK constant power spindle	Table moving

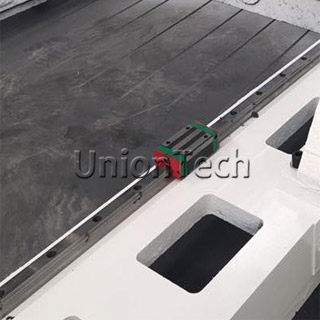

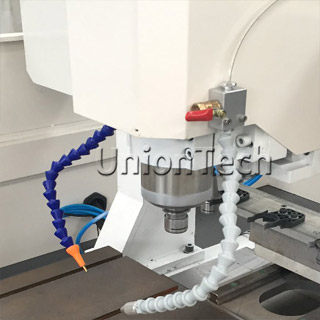

Hiwin square rail	Cast iron gantry	Oil spray system

Applications:

Mechanical processing, mould manufacturing can adapt from roughing to finishing processing requirements,

has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould,

automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
