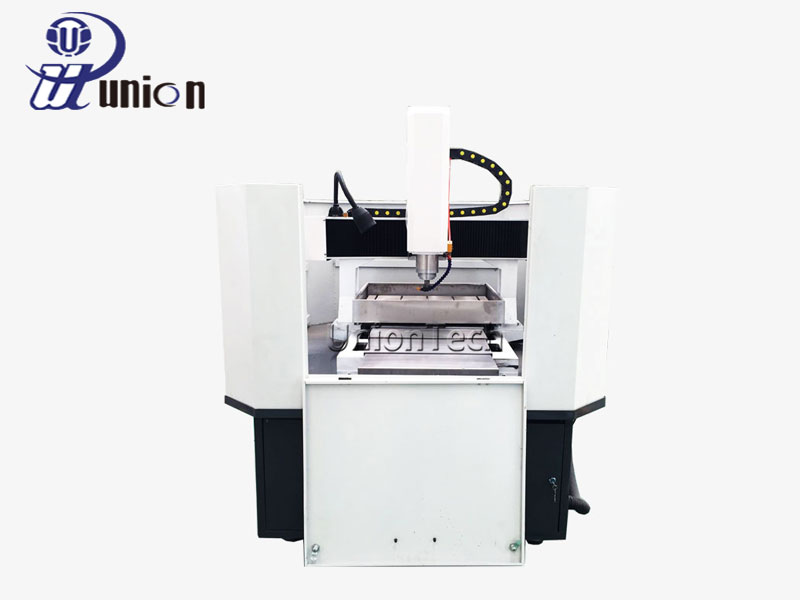

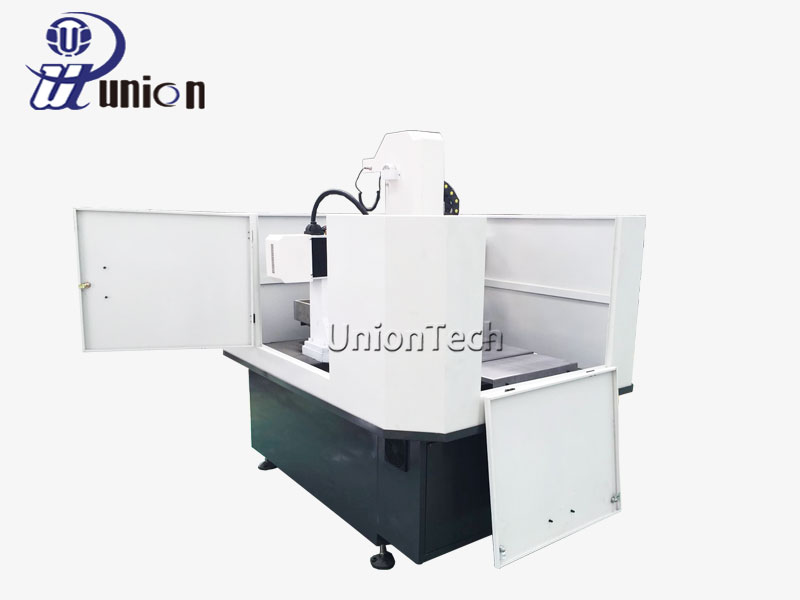

mini cnc 4040 router for metal

Parameter

Parts

Applications

Technical Parameters:

Model	UT4040M
Working area	400400200mm (can be customized)
Working Voltage	220V, 3PHASE, 60HZ (can be customized)
Control System	Mach3 control system
Spindle	3KW HQD GDK constant power spindle
Spindle speed	0-24000RPM/MIN
Motor and Driver	Leadshine stepper and driver
Inverter	Fuling inverter
Rotary axis	Yes
Structure	Cast iron
Table	Cast table
Gantry structure	Table moving
Transmission	3 Axis: Taiwan TBI Ball Screw
Command language	G Code
Software	ArtCam, JdPaint,Type3
Applications	Wood, MDF, PVC, Acrylic, Leather, Carpet, Carton, Rubber, Corrugated box, Foam, Leather strip.
Optional	RichAuto DSP A11 controller

Parts of mini 4040 cnc router for metal

cast iron structure	GDK metal spindle with constant power	table moving

Hiwin square rails	cast iron gantry	oil spray system for metal
