1.High rigid and high precision cast iron structure
2.Mach 3 controller
3.Yaskawa servo drive system
4.Taiwan PMI linear rails
5.Fanuc controller and servo drive system for option

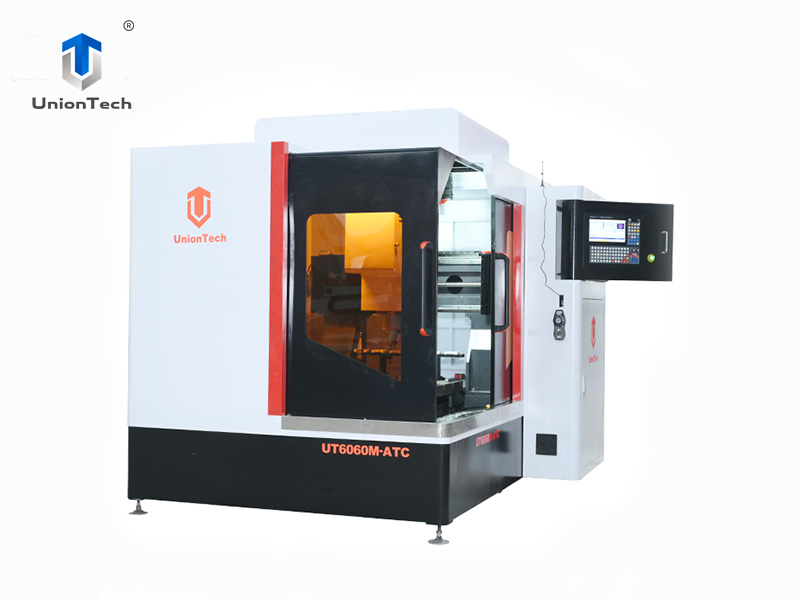

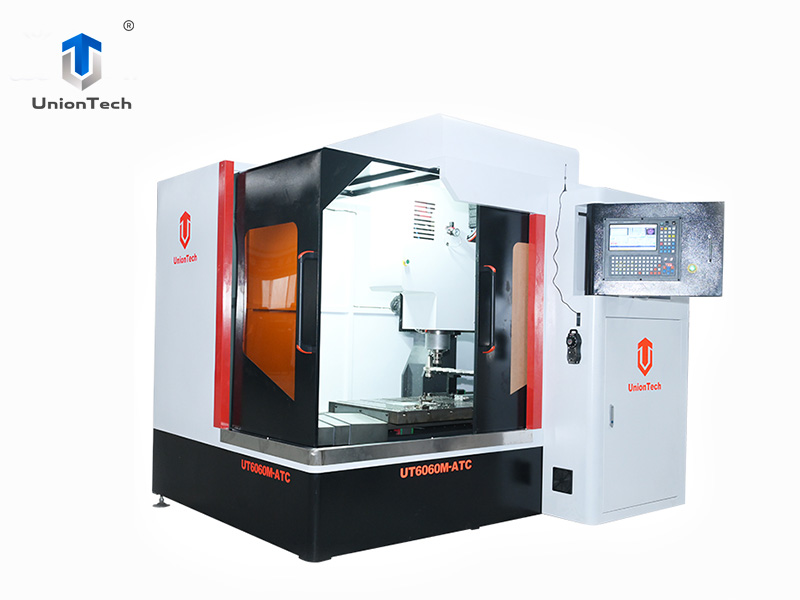

| Model | UT-6060M-ATC(MACH 3 CONTROLLER) |
| X /Y axis travel | 600*600mm |
| Spindle nose to table surface | 120-620mm |
| Max.loading | 600kg |
| X/Y/Z axis rapid feed | 24/24/20m/min |
| Cutting feed | 1-10m/min |
| Main shaft connection | Belt |
| Spindle taper | BT40-140 |
| Range of spindle speed | 8000rpm |
| Spindle motor | 7.5kW |
| ATC capacity | 4-6 |
| Max.tool diameter | Φ80/Φ150mm |
| Max.tool weight | 8kg |
| Position accuracy(Standard) | ±0.02/300mm |
| Repeat positioning accuracy(standard) | ±0.01mm |
| Dimensions | 3000x2260x2500mm
|
| Weight | 2500kg |
