Name: New Technology Five Axis Cnc Router For Wood Fam Pp Pe Aluminum
SKU: 0

PRODUCTS

HOME > PRODUCTS > CNC Router > 5 Axis CNC Router > New Technology Five Axis Cnc Router For Wood Fam Pp Pe Aluminum

Classification

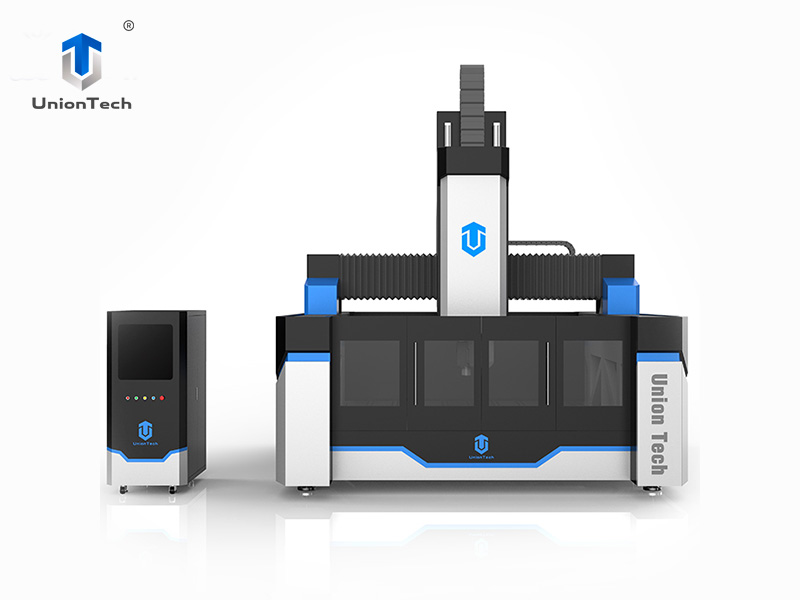

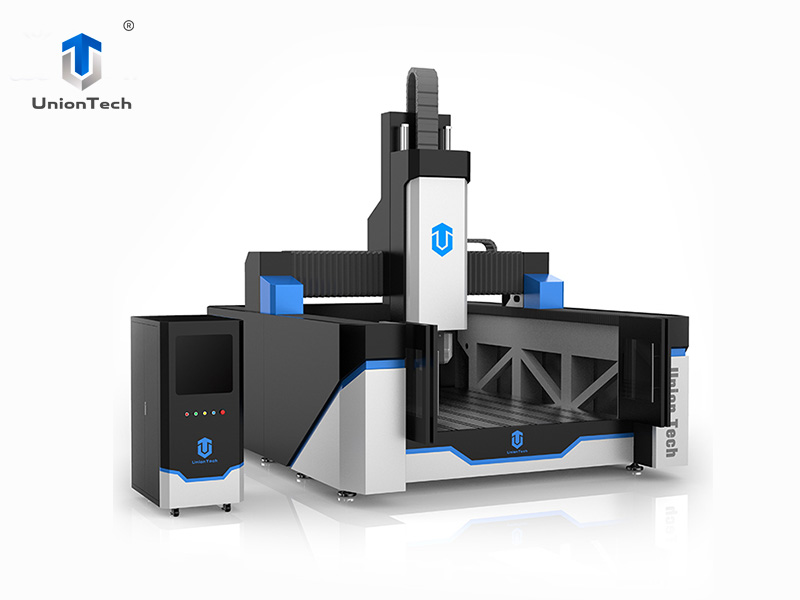

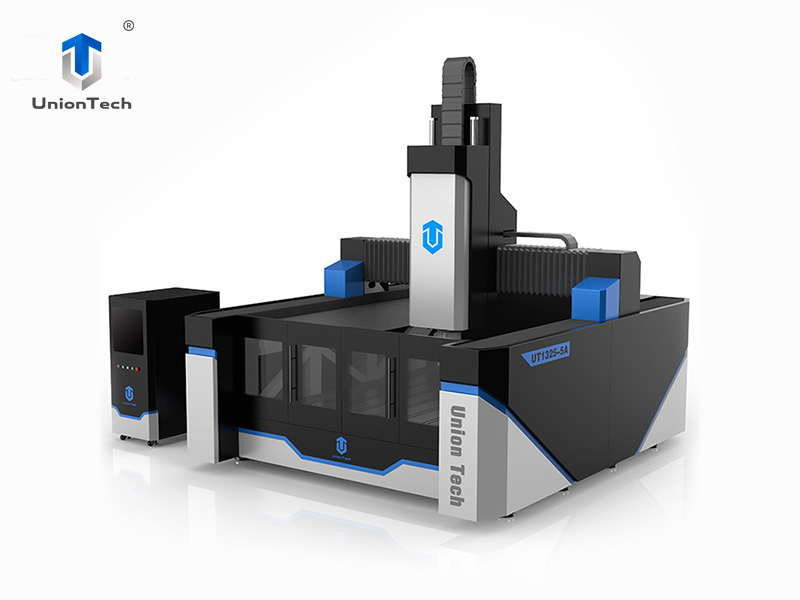

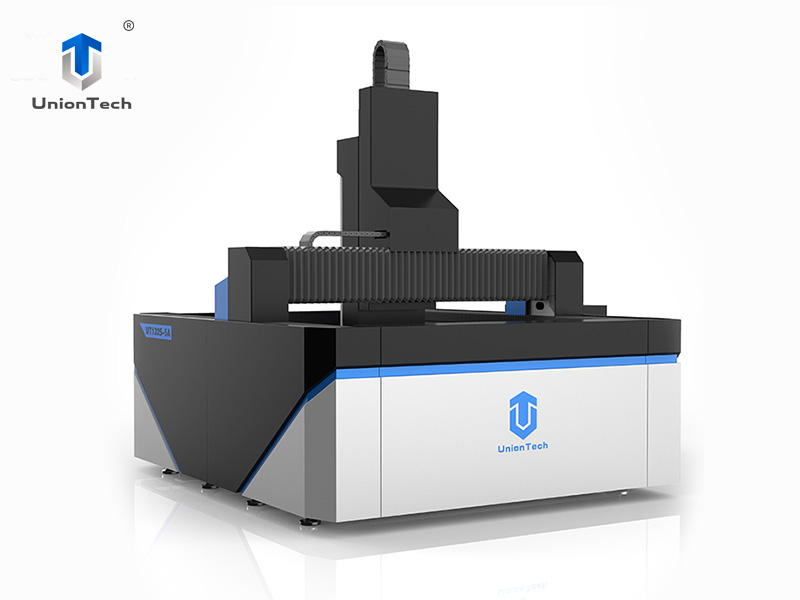

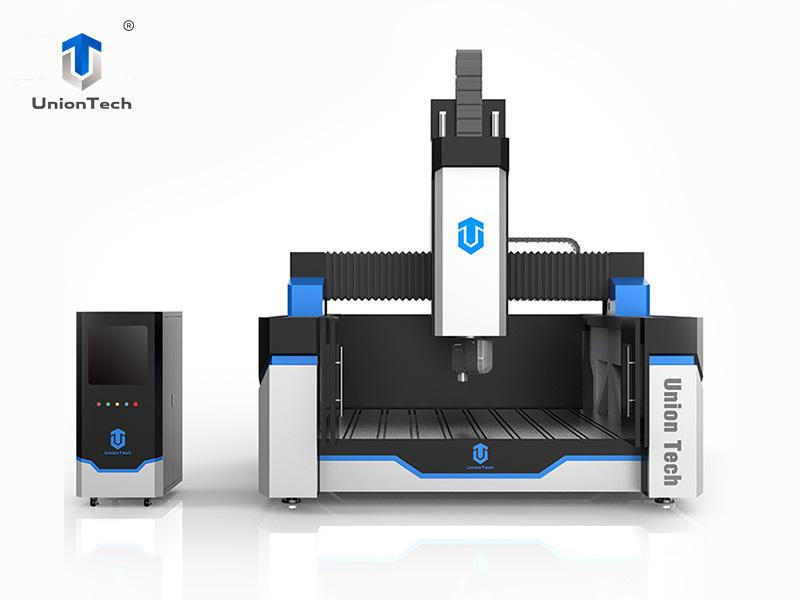

New Technology Five Axis Cnc Router For Wood Fam Pp Pe Aluminum

Model: UT-1325-5A
Min.Order Quantity: 1 Set/Sets
Supply Ability: 10 SetSets per Month
Port: QingDao/YiWu/ShangHai/Guangzhou/NingBo
Payment Terms: T/T,Western Union,paypal

Tel：+86 15562667312

Email：bill@union-cnc.com

WhatsApp：+86 15562667312

Parameter

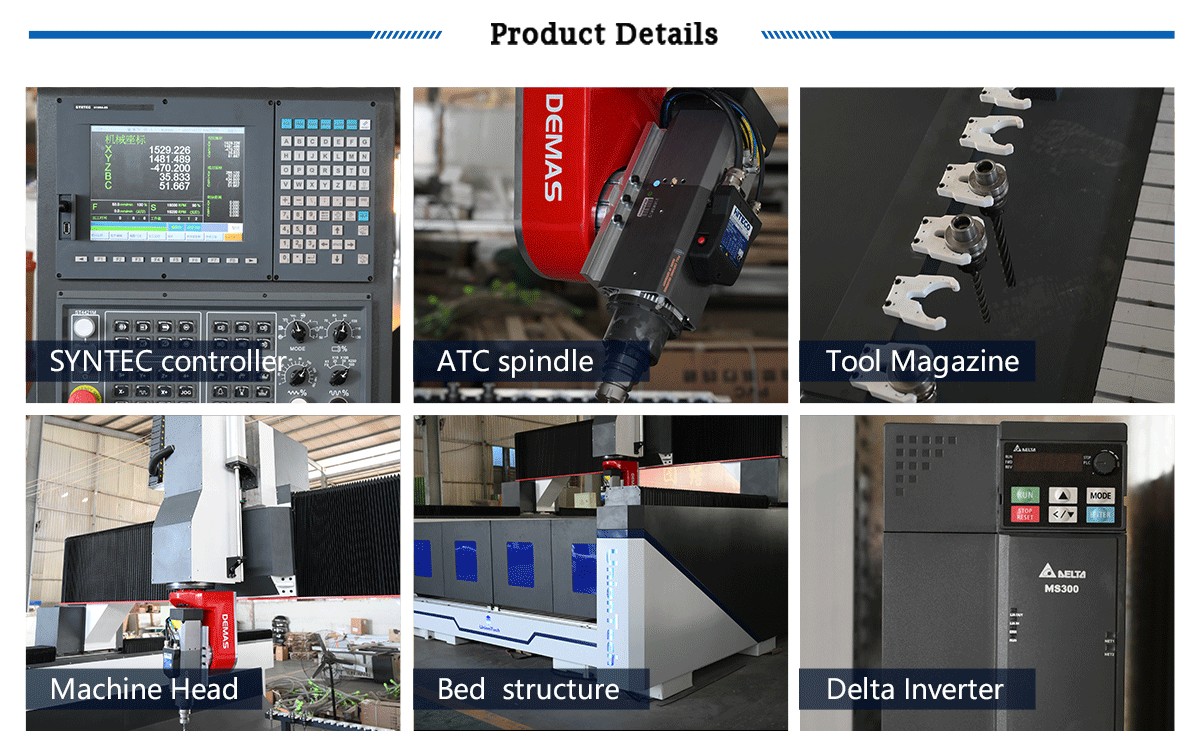

Parts

Applications

Parameters:

Model	UT-1325-5A
Movement type	Gantry moving
Working area	130025001000MM(can be customized)
5axis head	Italy 5axis head
Spindle	Italy Hiteco water cooling spindle
Working voltage	AC 3P 380V 50HZ(can be customized)
Control system	Syntec control system
Material of table	Aluminum profile
Material fixed type	T-Slot
Output power of spindle	11KW
Spindle speed	0-24000 RPM
Motor and driver	Japanese YASKAWA Servo motor and driver
Inverter	Fuling inverter
Cutter specifications	ER32, 20mm diameter
Maximum speed:	X Axis 50m/min Y Axis 50m/min Z Axis 10m/min C Axis 2700°/min A Axis 2700°/min
Programming Software	Powermill, UG
Calibration	Auto tool sensor calibration
Equipment data storage and capacity	Cable transmission,USB,CF
Command language	G Code
