• Technical Parameters:



    Model

    UT6060M

    Working area

    600*600*200mm (can be customized)

    Working Voltage

    220V, 1PHASE, 50HZ (can be customized)

    Control System

    Mach3 control system

    Spindle

    2.2KW HQD GDK constant power spindle

    Spindle speed

    9000-18000RPM/MIN

    Motor and Driver

    Leadshine easy servo motor and driver

    Inverter

    Fuling inverter 3.7kw

    Rotary axis

    Yes

    Structure

    Cast iron

    Table

    Cast table

    Gantry structure

    Table moving

    Transmission

    3 Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Applications

    Wood, MDF, PVC, Acrylic, Leather, Carpet,   Carton, Rubber, Corrugated box, Foam, Leather strip.

    Optional

    RichAuto DSP A11 controller


  • Parts of mini 6060 cnc router for metal


    20180723100052371.jpg@!w400

    cast iron structureGDK metal spindle with constant powerMach3 controller

    Hiwin square railscast iron gantryoil spray system for metal

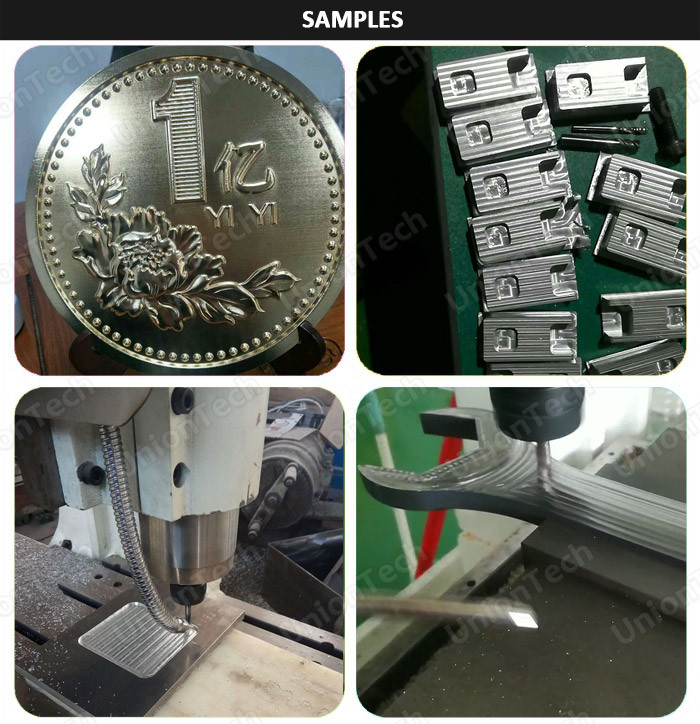

  • Applications:



    Mechanical processing, mould manufacturing can adapt from roughing to finishing processing requirements,

    has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould,

    automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.


shoe mouldling making cnc router for aluminum

Sorry, I didn't find what you expected.

working area:600*600*200mm
cast iron structure with half enclosure
