• Parameters:


    Model

    UT-1525-2H

    Working area

    1500*2500*300mm (can be customized)

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    DSP A11 control system

    Control box

    Independant control box

    Spindle

    2pcs* 3.5kw HQD air cooling spindles

    Spindle speed

    0-18000RPM

    Motor and Driver

    YAKO2811 driver and stepper motor

    Inverter

    3.7kw Fuling inverter

    Structure

    Heavy duty thicker and bigger welded frame and gantry

    Table surface

    T-slot Working Table with PVC

    Gantry structure

    Gantry Moving

    Calibration

    Manual tool sensor calibration

    Transmission

    X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/TBI 25# Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Optional

    Rotary device: 200mm diameter* 2000mm   length


    Advantages:

    • Multi heads can also work alone, and control its heads independently .

    • The distance of 2 heads and working area can be customized according your requirements.

    • Please notice that it is an economical processing machine.


  • Machine details:

    HQD air cooling spindlesFuling inverter
    The spring for Z axis

    DSP A11 controllerT-slot working tableYAKO2811 driver

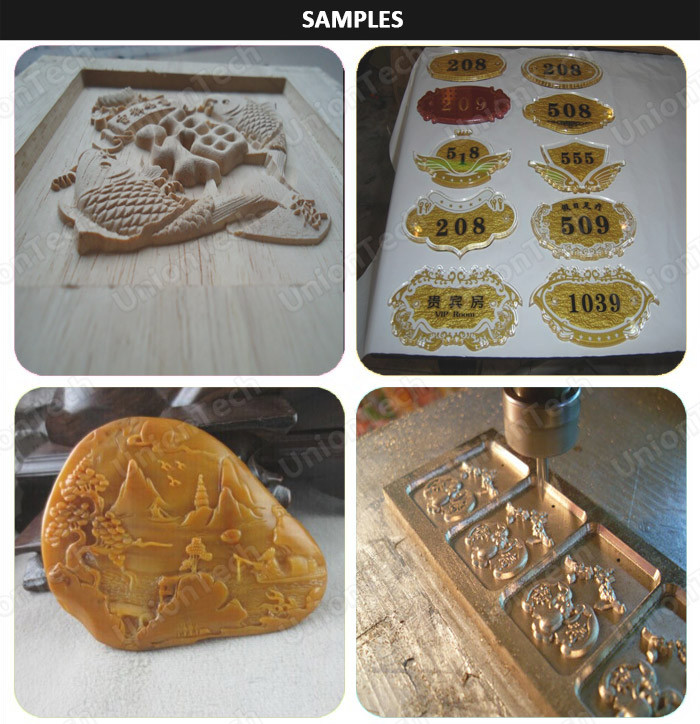

  • Engraving, milling and cutting processing for wood, mdf, acrylic, PVC, density boards, artificial stones, organic glass, plastics and metal sheets such as copper and aluminum etc.


    1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.


    2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.


    3. Arts Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieving effects of exquisite patterns and characters.



UT-1525-2H Multi Heads CNC Wood Carving Machine
