• Parameters:


    UT-2030ATC-4A cnc router

    Working area

    2000*3000*400mm (can be customized)

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    Weihong NK280 control system


    HQD 9kw air cooling spindle

    4 axis

    The spindle can rotate 180 degree with servo motor

    Spindle speed


    Motor and Driver

    YASKAWA servo driver and motor


    11kw Fuling inverter


    Heavy duty thicker and bigger welded frame and gantry

    Table surface

    T-slot and Vacuum Working Table with 6 zones

    Gantry structure

    Gantry Moving

    Vacuum pump

    7.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ)


    Auto tool sensor calibration


    X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 25# Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code


    Linear type with 10 tools

    1) Weihong NK280 control system, with high performance and competitive price. Professional famous brand in 4 axis machine line.

    2) HQD ATC Air cooling spindle, with strong cutting ability, low noise, it can ensure the machine working for long time.

    3) Original 850W YASKAWA Servo motors & drivers from Japan, ensure the machine's stronger strength and high accuracy.

    4) Rotating head working with YASKAWA servo motor and imported reducer, it can make sure there are no gaps when spindle rotating.

  • Machine details:

    HQD 9kw ATC air cooling spindle4 axis NK280 control systemYASKAWA servo motor

    ATC tool storageLinear guide rails4axis spindle

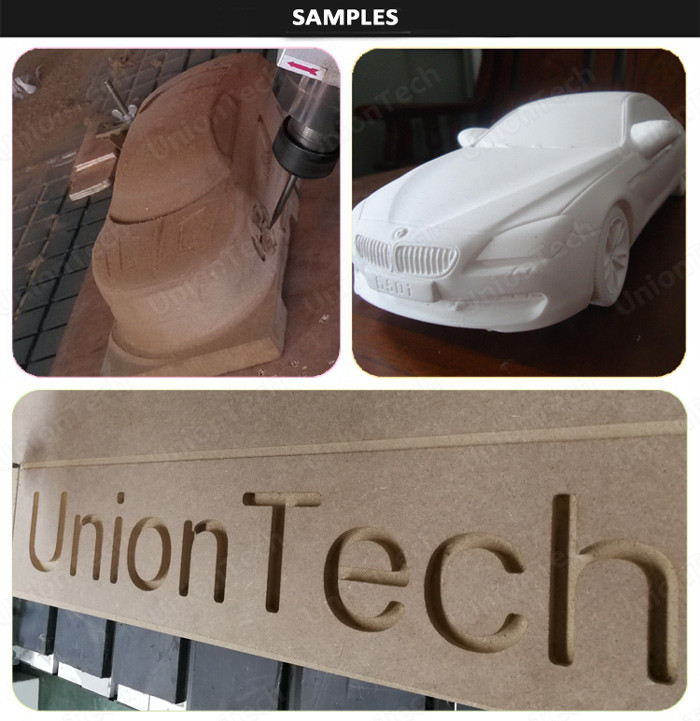

  • Applications:

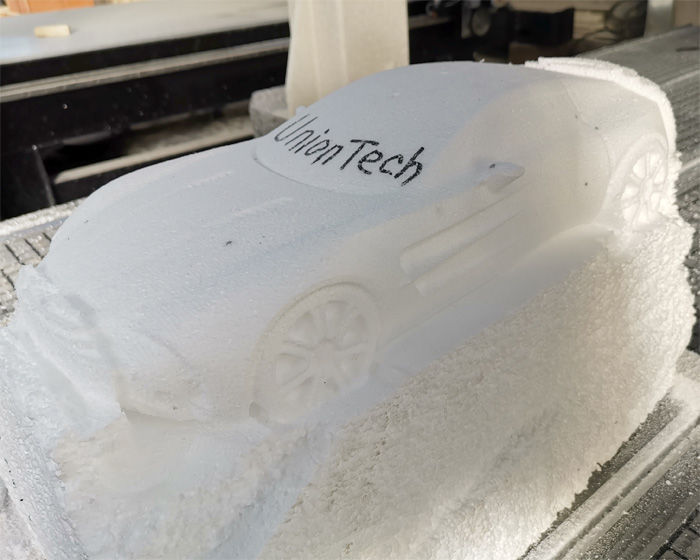

    1) Mould: wood,wax, wood, gypsum,foams,wax

    2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

    3) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

    4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

    5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

4 axis ATC cnc milling machine
ATC cnc router with 4axis spindle
