• Description

    Parameters

    X,Y,Z Working Area

    2500*1300*1000mm

    Table Surface

    Iron T-slot Table with PVC

    Frame

    Welded Structure

    X, Y Structure

    Original 30# HINWIN linear guide, helical rack

    Z Structure

    Hiwin Rail Linear guide and TBI Ball Screw

    Max. Power Consumption

    (Without Spindle)2.5kw~3kw

    Spindle Power

    5.5kw Servo spindle, for steel working

    Torque

    17.5 N.m

    Drive Motors

    Japanese YASKAWA servo motor

    Working Voltage

    AC380V/50-60Hz,3PH (Option: 220V/1phase)

    Command Language

    G Code

    Operating System

    Taiwan Syntec control system

    Reducer

    Japanese Shimpo

    Computer Interface

    USB

    X,Y,Z repositioning Accuracy

    ±0.02mm

    X,Y Resolution

    ±0.01mm

    Software Compatibility

    Type3/UcancameV9 Software, (Option: Artcam Software)

    Lubrication system

    Auto

    Tool sensor

    Auto

    Dust collector

    3kw double packages dust collector

    Optional parts

    Italy air cooling spindle

    Rotary device



  •   Machine details:


    3d Model Foam Model Making 2513 CNC Router CNC Milling Machine 4 Axis 180 Degree Rotary Wood 5.5kw Servo Motor Spindle 2500*1300

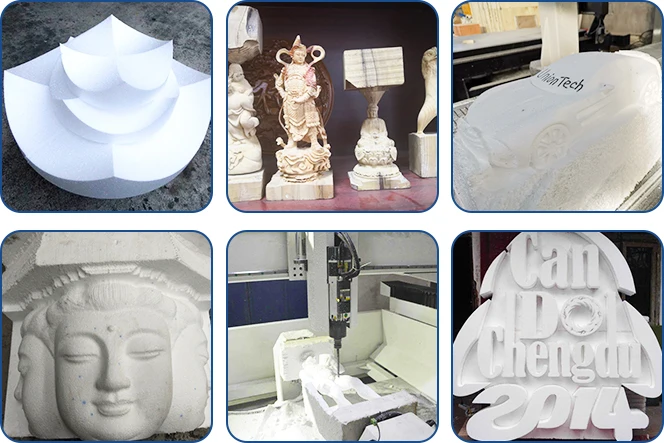

  •  Applications:



    1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



    2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



    3. Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile

    interior decoration, engineering plastic and other non-metal materials. Stainless steel, iron drilling and milling


3d Model Foam Model Making 2513
Working Table Size(mm):2500*1300 Repeatability (X/Y/Z) (mm):0.02 mm Spindle:5.5kw servo motor spindle Working area:2500*1300*1000mm
